RF Power Components : MaxiTuner

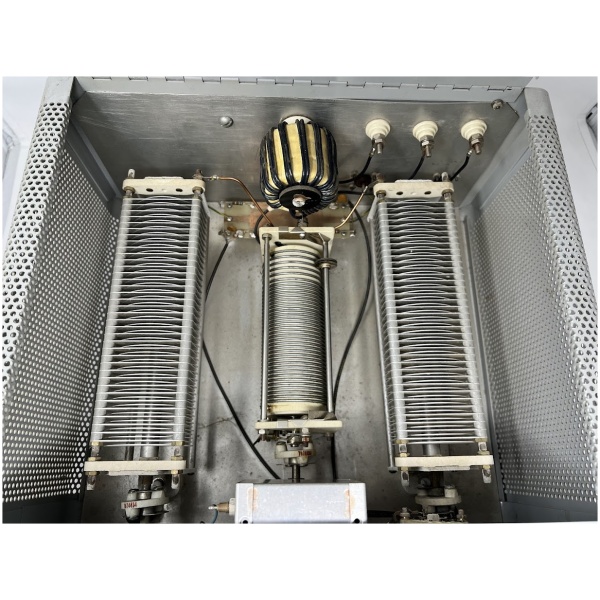

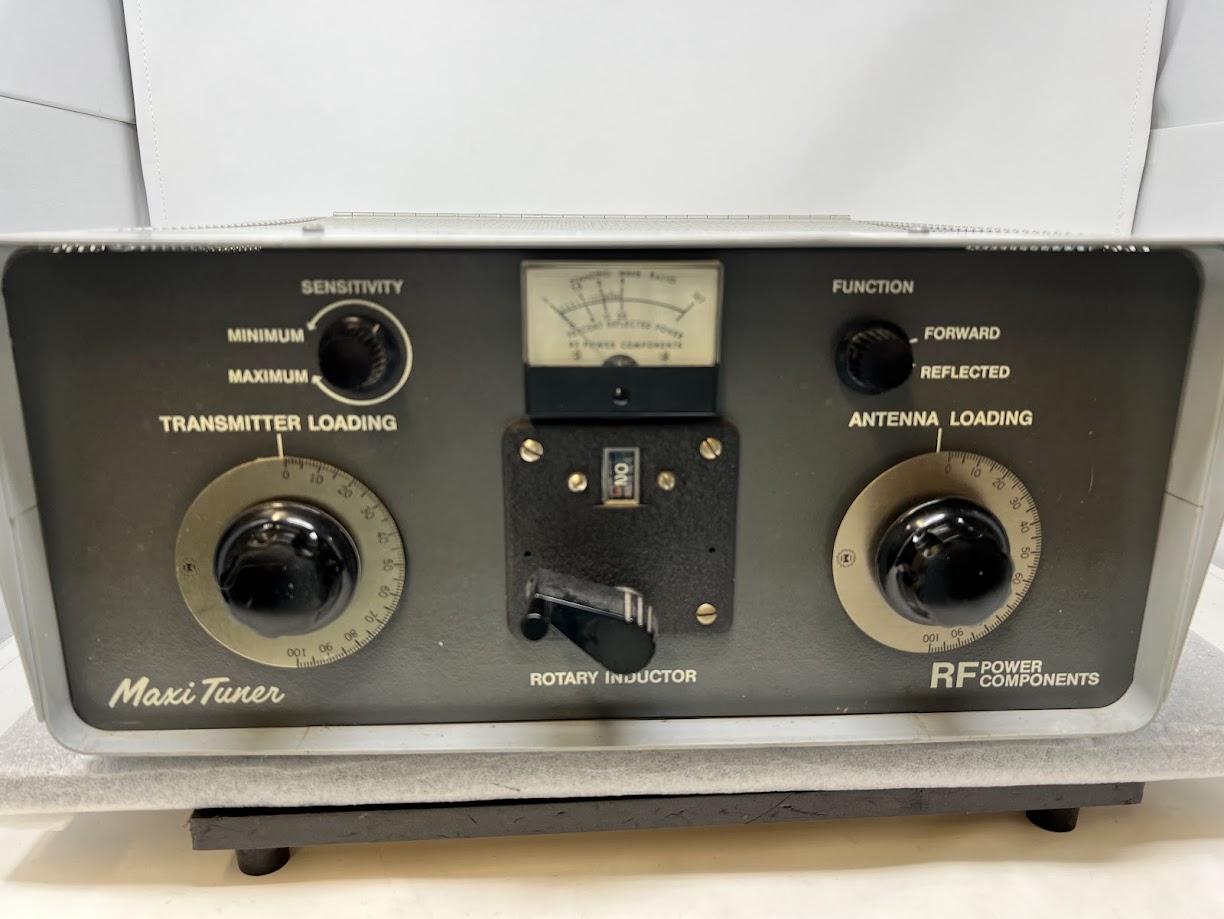

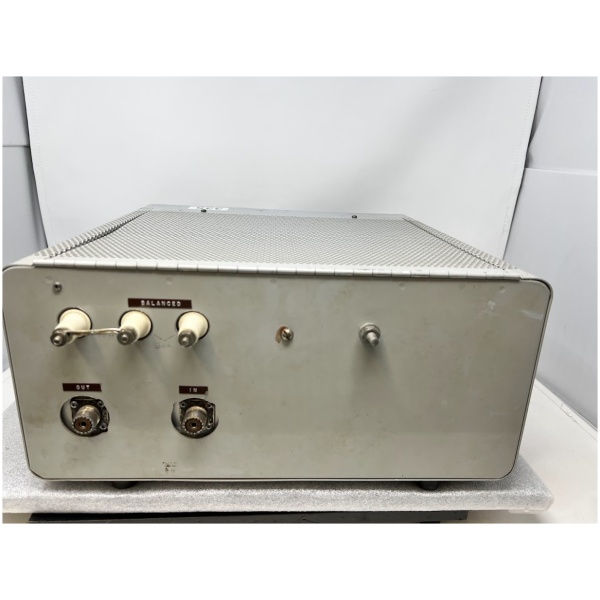

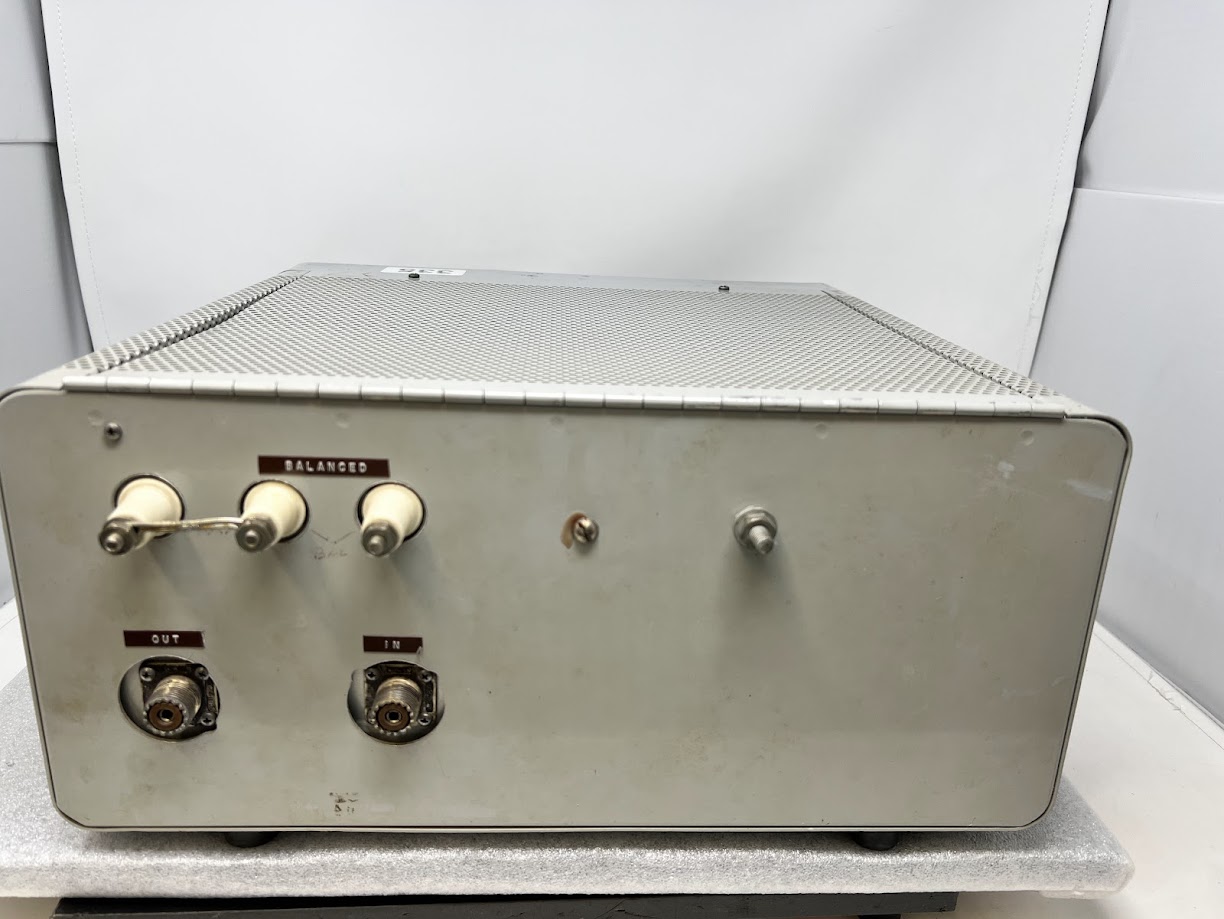

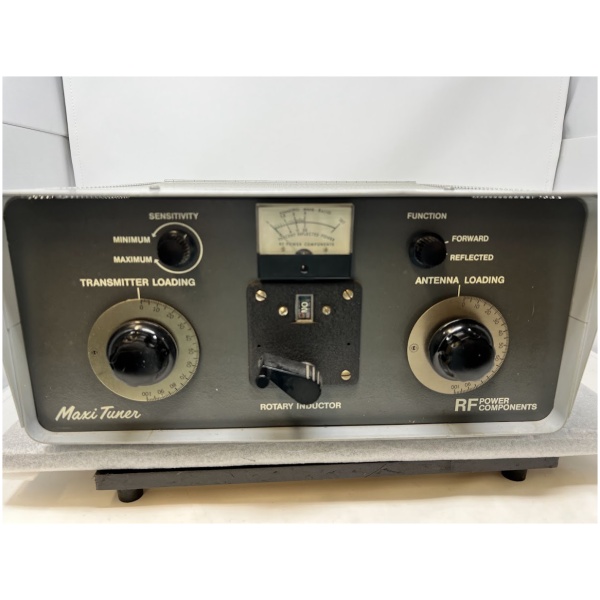

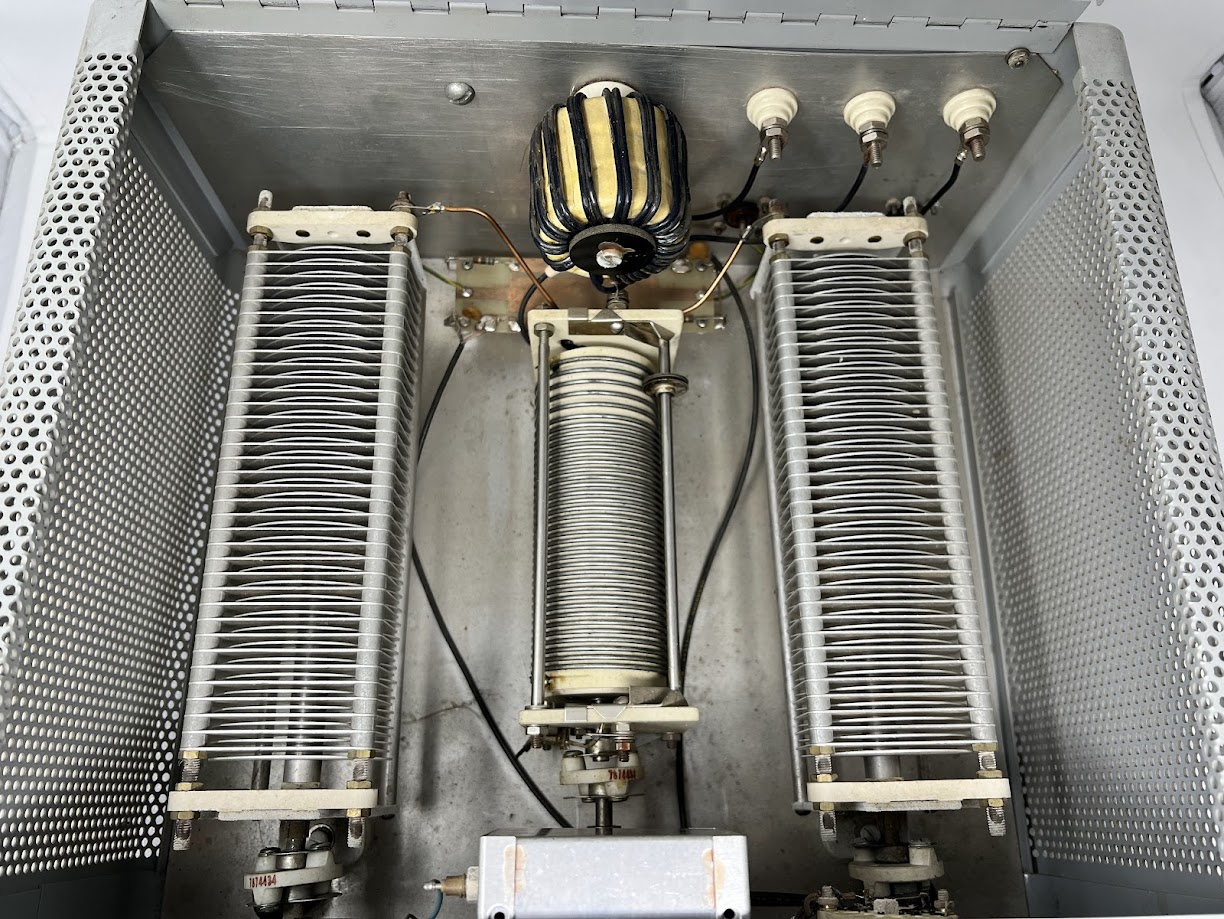

The MaxiTuner was manufactured by RF Power Components of Ladysmith, WI in the ’70s and ’80s. The design was based on an improved “Ultimate Transmatch” design. It provided continuous coverage from 1.7 to 30MHz and was rated at 3kW PEP. Quality components were used throughout including: a Multronics 229-203 28uH rotary inductor, two 6kV Peak-to- Peak 500pF variable capacitors, heavy-duty balun, cast aluminum turns counter for the rotary inductor, 6:1 ratio vernier drives with 0-100 logging scales on both variable capacitors, and a “Monimatch” SWR metering system. The MaxiTuner was built into a LMB CO-1 Collins-style cabinet, matching the Collins S-Line in design and color. The MaxiTuner accepted both coax and balanced-line transmission lines.

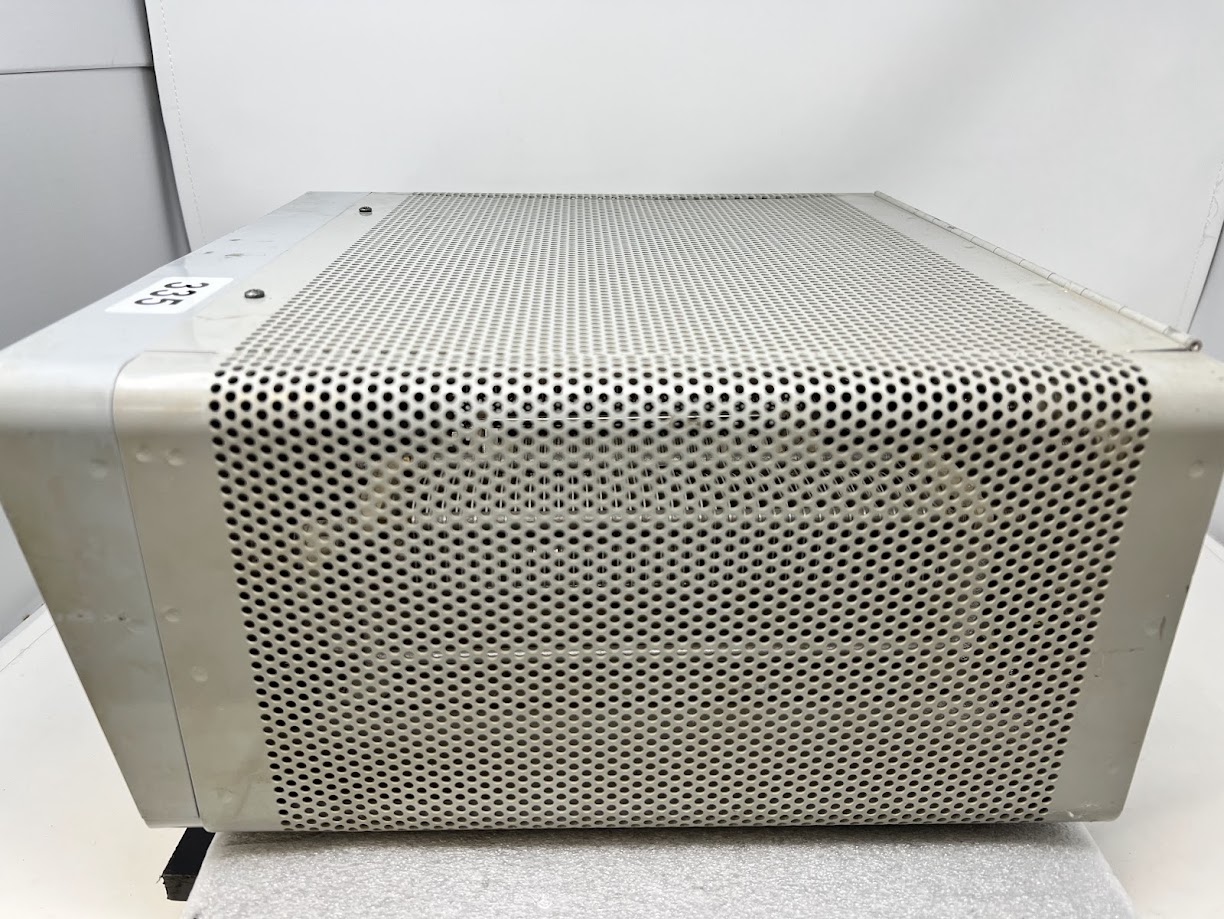

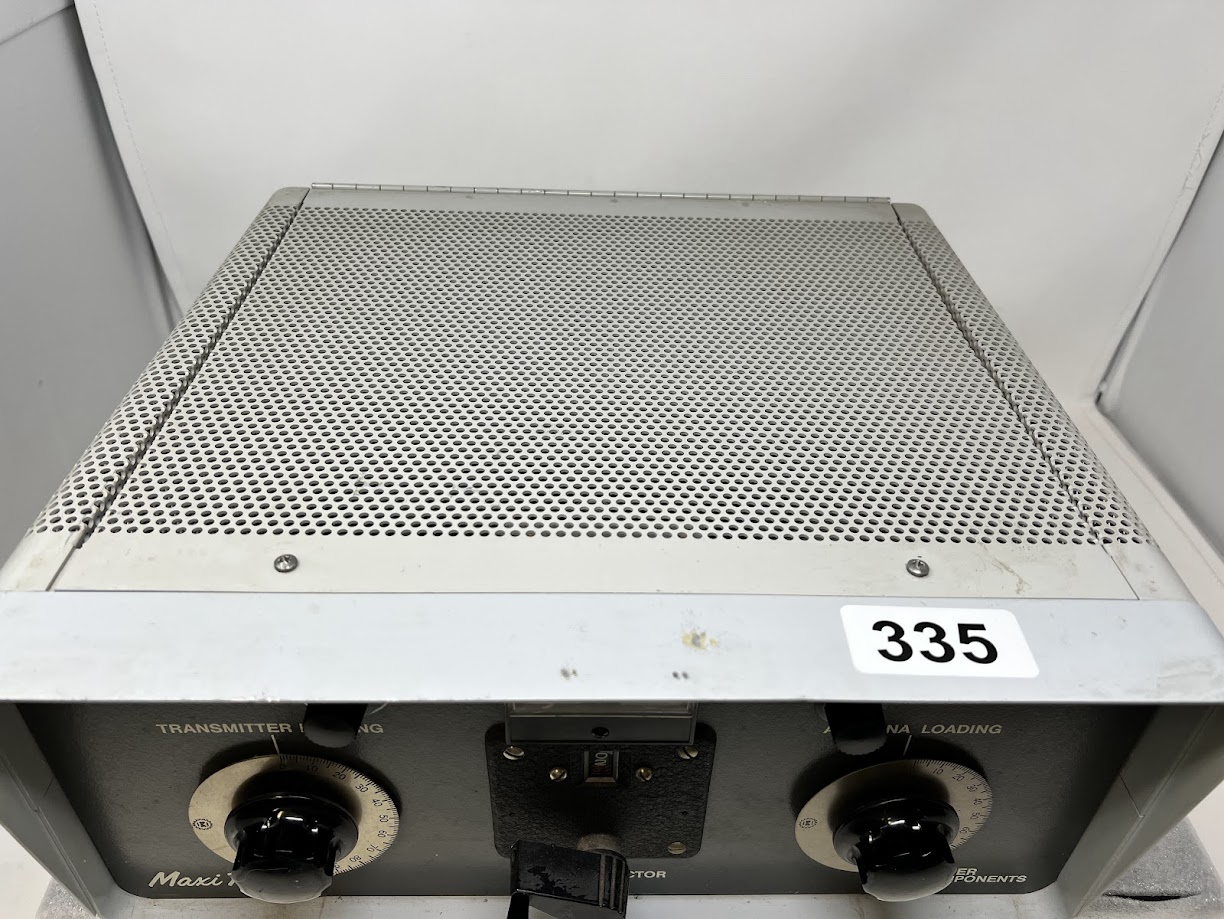

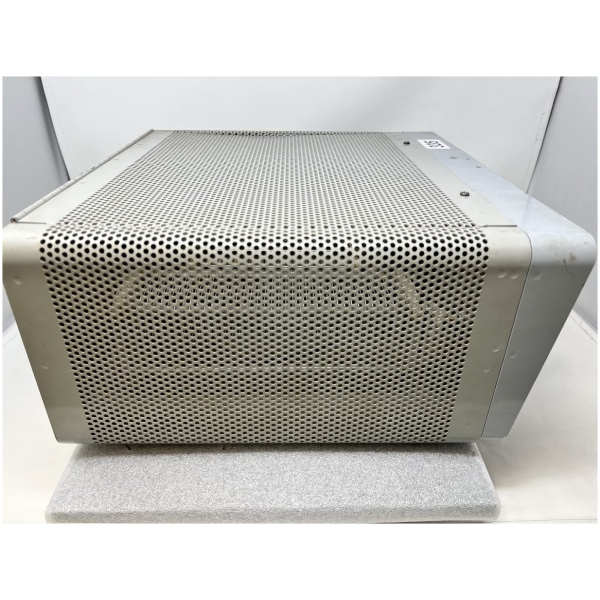

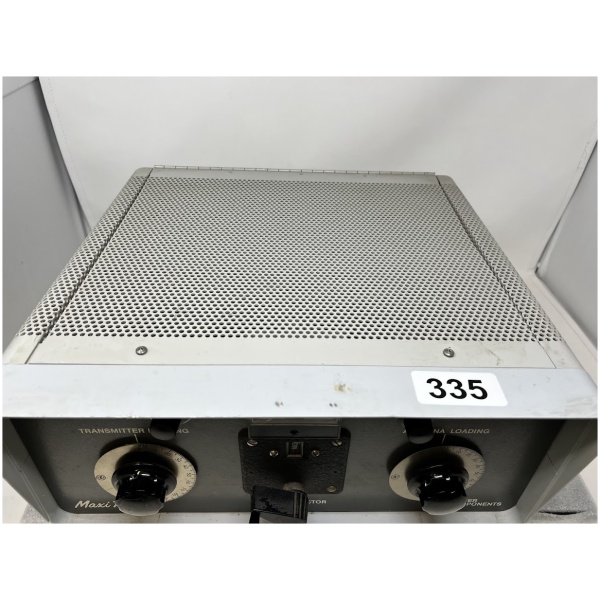

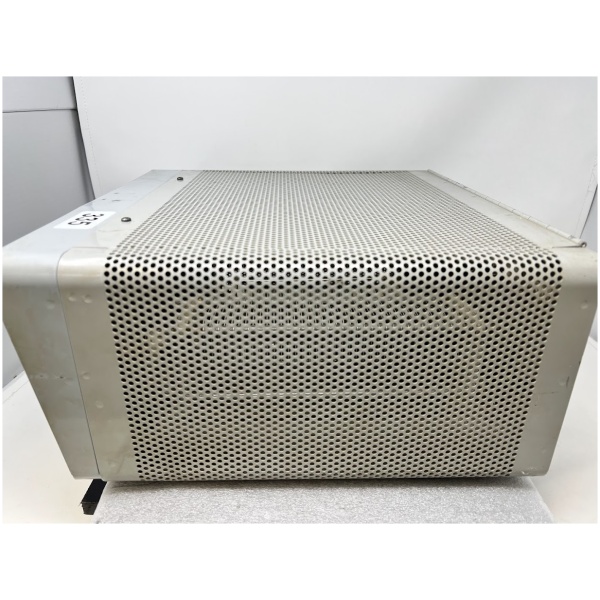

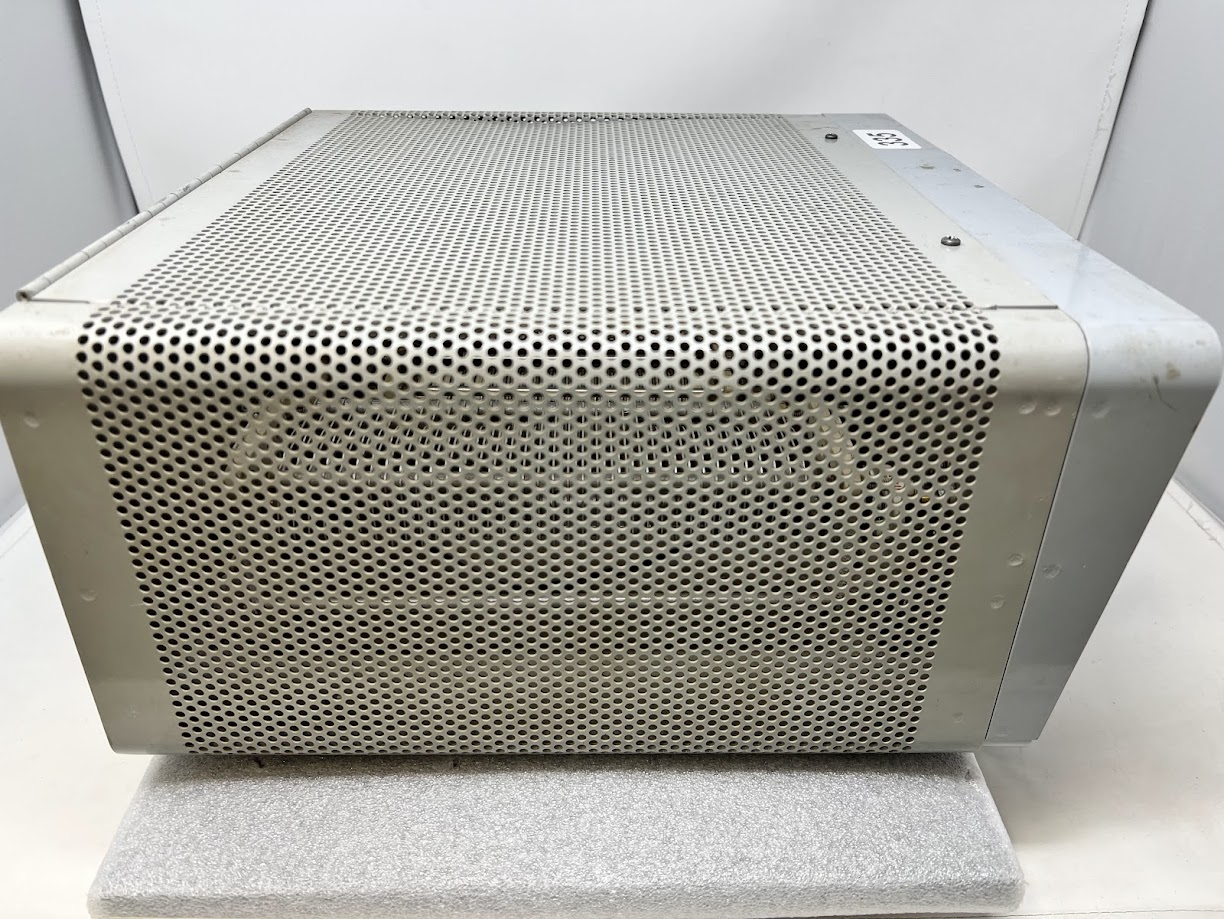

Used item in Good Condition given it’s age. Please see pictures.
Item Tested and working.
Please note any test instruments and meters used to show functionality in photos are not included.
What you see in the photos that forms part of the accessories of the specific unit is included, nothing more.
All these pieces comes from working ham shacks as well as storage units and sold as is.
If you have questions please ask before committing to buying. Please read our sales terms and conditions.
Thank you for supporting the family of a SK!
